• Mounted Mould Board Plough
  • Reversible Mould Board Plough

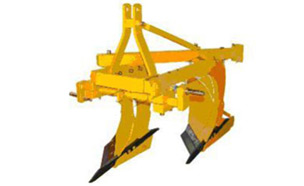

Mounted Mould Board Plough

  2 FURROW 3 FURROW
FRAME 80 x 80 x 7 mm box and 50 mm round
TYNE 36 mm Profile cut single piece
LENGTH (L) 1300 mm 1880 mm
HEIGHT 1066 mm
BLADE 10 mm
MOULD BOARD 8 mm
SHOVEL 40 x 25 mm Bar (EN-42 Forged)
WIDTH OF CUT (B) 350 mm 525 mm
LENGTH 610 mm 910 mm
CUTTING WIDTH 235 kgs. 350 kgs.
WEIGHT 352 kgs. 400 kgs.
TRACTOR POWER (HP) 50-65 65-75

Benefits

  • It can handle the toughest ploughing job with outstanding penetration performance.
  • It is designed to work in all types of soil for basic functions such as soil breaking, soil raising and soil turning.
  • It can be used in stony & rooted soils.

Features

  • The under- frame and unit-to-unit clearance are adequate to cope with trashy conditions.
  • Adding an extra furrow or repositioning units to allow for extra clearance is quick and easy.
  • The plough has special wear-resistant steel bottoms with bar points for toughest ploughing jobs.

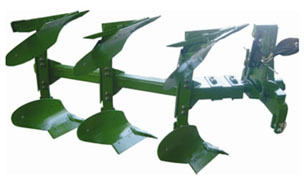

Reversible Mould Board Plough

  2 FURROW 3 FURROW
FRAME 115 x 115 x 10 mm box with 50 mm round
TYNE 105 x 40 mm Profile cut single piece
LENGTH (L) 1905 mm 2505 mm
WIDTH 1370 mm
HEIGHT 1370 mm
BLADE 10 mm
MOULD BOARD 8 mm
SHOVEL (BAR POINT) 40 x 25 mm Bar (EN-42 Forged)
THREE POINT LINKAGE 75 x 20 mm flat with 32017 NO. Bearing
ADJUSTMENT Hydraulic
DEPTH OF CUT 350 mm
WIDTH OF CUT 740 mm 910 mm
WEIGHT (APPROX) 430 kgs. 575 kgs.
TRACTOR POWER (HP) 65-70 75-90

Benefits

  • It can handle the toughest ploughing job with outstanding penetration performance.
  • It is designed to work in all types of soil for basic functions such as soil breaking, soil raising and soil turning.
  • It can be used in stony & rooted soils

Features

  • The plough has special wear-resistant steel bottoms with bar points for toughest ploughing jobs.
  • Bar point bottoms ensure longer life as they can be extended or reversed and re-used till the last possible length.
