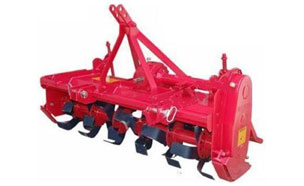

Rotary Tiller (Single Speed Chain Drive)
SA 1.25 | SA 1.50 | SA 1.75 | SA 2.00 | |
TRACTOR POWER | 40-45 | 45-50 | 50-55 | 55-60 |
OVERALL WIDTH | 155 cm | 180 cm | 205 cm | 230 cm |
TILLAGE WIDTH | 125 cm | 150 cm | 175 cm | 200 cm |
GEAR BOX | Single Speed | |||
P.T.O SPEED (RPM) | 540 | |||
ROTOR SPEED | 204/174 | |||
GEARBOX OVERLOAD PROTECTION | Shearbolt | |||
MOUNTING HEIGHT | 117 cm | |||
NO. OF FLANGES | 5 | 6 | 7 | 8 |
NO. OF BLADES | 30 | 36 | 42 | 48 |
TOTAL WEIGHT (approx) | 297 kg | 337 kg | 377 kg | 417 kg |
Benefits
- Suitable for use in dry & wet land cultivation
- Suitable for medium & hard soil conditions
- Used for loosening & aerating soil upto a depth of 5-6 inches
- Prepares seed beds quickly and economically
Features
- Single speed gear box with 3 point linkage
- Compatible with 540 P.T.O RPM
- Easy depth adjustment
- Available in both options - gear driver and chain driven
- Type of blade 'L' type

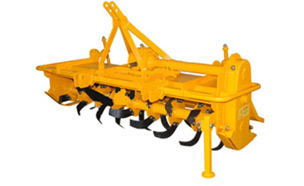

Rotary Tiller (Multi Speed Chain Drive)
SA 1.25 | SA 1.50 | SA 1.75 | SA 2.00 | |
TRACTOR POWER | 40-45 | 45-50 | 50-55 | 55-60 |
OVERALL WIDTH | 155 cm | 180 cm | 205 cm | 230 cm |
TILLAGE WIDTH | 125 cm | 150 cm | 175 cm | 200 cm |
GEAR BOX | Multi (Four Speed) | |||
P.T.O SPEED (RPM) | 540 / 1000 | |||
GEARBOX OVERLOAD PROTECTION | Shearbolt | |||
MOUNTING HEIGHT | 117 cm | |||
NO. OF FLANGES | 5 | 6 | 7 | 8 |
NO. OF BLADES | 30 | 36 | 42 | 48 |
TOTAL WEIGHT (approx) | 297 kg | 337 kg | 377 kg | 417 kg |
Benefits
- Suitable for use in dry & wet land cultivation
- Suitable for light & medium soil conditions
- Used for loosening & aerating soil upto a depth of 5-6 inches
- Prepares seed beds quickly and economically
Features
- Single speed gear box with 3 point linkage
- Compatible with 540 P.T.O RPM
- Easy depth adjustment
- Available in both options - gear driver and chain driven
- Type of blade 'L' type
